Description
e bike fully enduro HPC Trailblazer Full Carbon Enduro Electric Bike 2026HPC Trailblazer Full Carbon Enduro Electric Bike Motor Bafang Mid Drive, custom controller firmware, 750W (M600) 1200W (M600) 2000W (M560) Battery USA Made, Quick Change 48V 52V (2000W), 10AH 15AH 17. 5AH 20. 25AH UI Remote DPC 245, 5 Levels PAS, Bluetooth, App capability w Handlebar remote Charger Custom charger, 54. 6V 58. 8V (2000W) 2A 4A 5A, DC 5. 5 Plug, 100 240V Wiring Harness Custom HPC wiring harness w Brake Cutoff Frameset Frame HPC Carbon

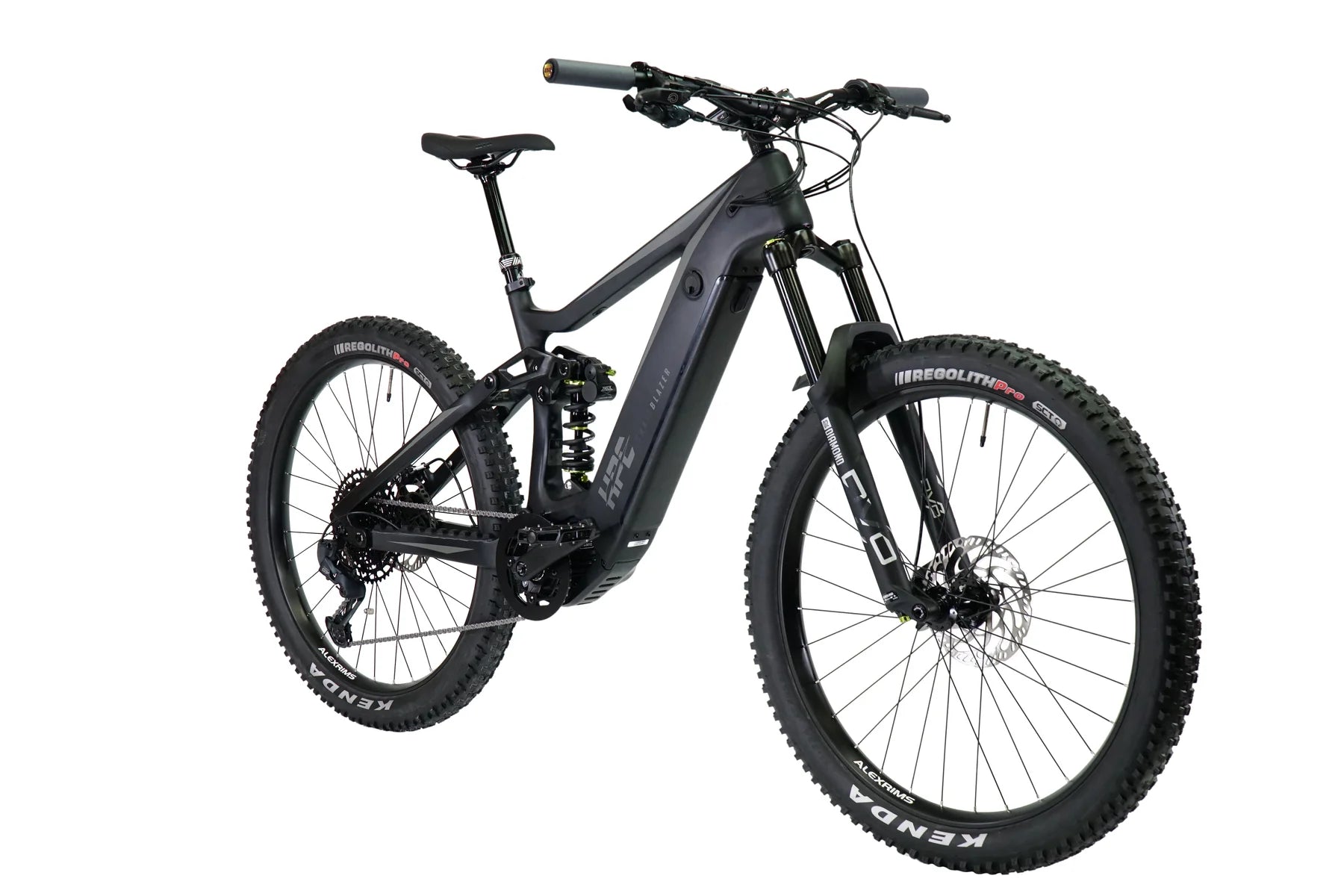

HPC Trailblazer Full Carbon Enduro Electric Bike
Motor
Bafang Mid Drive, custom controller/firmware, 750W (M600) / 1200W (M600) / 2000W (M560)
Battery
USA Made, Quick Change 48V / 52V (2000W), 10AH/15AH/17.5AH/20.25AH
UI/Remote
DPC 245, 5 Levels PAS, Bluetooth®, App capability w/Handlebar remote
Charger
Custom charger, 54.6V / 58.8V (2000W) 2A/4A/5A, DC 5.5 Plug, 100-240V
Wiring Harness
Custom HPC wiring harness w/ Brake Cutoff
Frameset
Frame
HPC Carbon Frame, 27.5"+ wheels (optional 29") full internal cable routing, 148mm spacing, 155mm of travel
Seat Binder
Alloy, 34.9 mm
Stem
FSA Orbit 1.5 ZS Internal Headset, sealed bearings
Suspension
Rear Shock
DVO Topaz T3, 185x55 Trunion
Fork
DVO Diamond D2, 29", 160mm Travel
Brakes
Front Brake
Magura MT4 Dual Piston, metallic pads, 180mm rotor
Rear Brake
Magura MT4 Dual Piston, metallic pads, 180mm rotor
Drivetrain
Shift Lever
SRAM GX Eagle, trigger, 12-speed, single click
Rear Derailleur
Sram GX Eagle, 12-speed
Cassette
Sram XG-1230, 12-speed, 11-50t
Chain
KMC E12 EPT, 124L
Crankset
Aluminum, Black, custom ISIS spline, 170mm
Chainring
Narrow/Wide, 104 BCD, 38T, steel
Wheels & Tires
Rims
Alex MD35 27.5+ / 29", hookless alloy, 35mm /30mm inner width, tubeless ready
Front Hub
HPC alloy, sealed cartridge bearings, 15x110mm thru-axle, 32h
Rear Hub
HPC alloy, sealed cartridge bearings, 148mmx12mm thru-axle, custom steel driver, 32h
Spokes
Phil Wood 14g, cold rolled/cut in house, black
Front Tire
Kenda Nevegal Pro, 27.5x2.8 / 29x2.4
Rear Tire
Kenda Nevegal Pro, 27.5x2.8 / 29x2.4
Inner Tubes
Standard, Presta Valve
Cockpit
Stem
Spank Spoon 318, 43mm length, 31.8mm bar bore
Handlebars
6061 mtn bars, 35mm diameter, 8 degree back sweep, 6 degrees up sweep, 800mm width. S1/S2: 30mm rise, S3-S6: 40mm rise
Grips
SDG Thrice, large 33mm
Saddle
WTB Volt, Cr-mo rails
SeatPost
SDG Tellis , infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 30.9, M: 125mm, L: 125mm, XL: 150mm
Seatpost Lever
Puget 2x MTB Lever
Top Speed:
750w- 28mph
1200W- 32mph
2000W- 40mph
Range:
10Ah-24 Miles
15Ah- 36 Miles
17.5Ah- 45 Miles
20.25Ah- 52 Miles
WARRANTY: 3 Year (limited): Motor, Controller, Throttle, Battery, Charger, Display. FRAME: 5 Year (Limited) COMPONENTS: Follow Manufaturer Warranty
HESE ARE SPECIAL ORDER BIKES AND TAKE BETWEEN 2-3 WEEKS TO BUILD AND RECEIVE
